Description

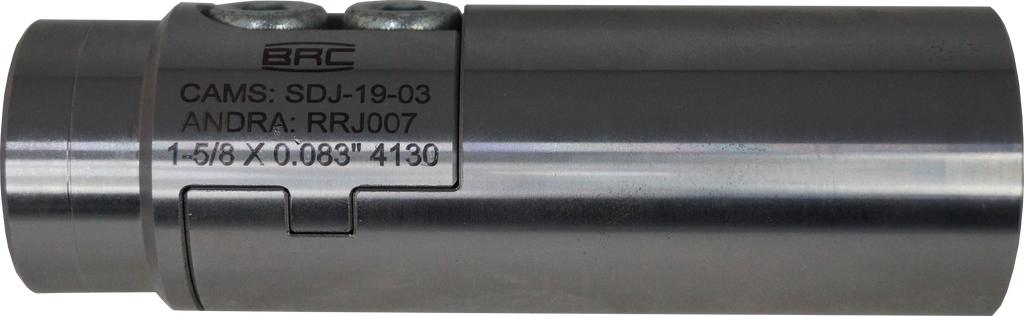

1 x TUBE JOINER
Suits TUBE: 1.5/8" O.D. x 0.083" Wall.
1 x Female Half
1 x Male Half
2 x M10 Grade 12.9 Bolts
NOTE for all QUEENSLAND customers: http://www.racecarengineering.com.au/ is now the exclusive QUEENSLAND distributor for BRC roll cage products.
Made from 4140 STEEL
B=46mm C=37mm D=41.28 (1.625") Weight with Bolts = 0.59Kg
MOTORSPORT AUSTRALIA Homologation Number: SDJ-17-01
ANDRA Homologation Number: RRJ002
The joint withstood the required load of 2.7kN in both orientations as applied according to FIA homologation regulations. The joint is therefore considered to meet the specified requirements.
Legal Considerations:
Billet Race Craft makes no claim as to the suitability or safety of this joint when used in a safety cage, only that it meets the load requirements specified in: 2017 FIA Homologation Regulations For Safety Cages. You must decide if these couplings suit your application.
Suits TUBE: 1.5/8" O.D. x 0.083" Wall.
1 x Female Half
1 x Male Half
2 x M10 Grade 12.9 Bolts
NOTE for all QUEENSLAND customers: http://www.racecarengineering.com.au/ is now the exclusive QUEENSLAND distributor for BRC roll cage products.
Made from 4140 STEEL
B=46mm C=37mm D=41.28 (1.625") Weight with Bolts = 0.59Kg
MOTORSPORT AUSTRALIA Homologation Number: SDJ-17-01
ANDRA Homologation Number: RRJ002
The joint withstood the required load of 2.7kN in both orientations as applied according to FIA homologation regulations. The joint is therefore considered to meet the specified requirements.
Legal Considerations:
Billet Race Craft makes no claim as to the suitability or safety of this joint when used in a safety cage, only that it meets the load requirements specified in: 2017 FIA Homologation Regulations For Safety Cages. You must decide if these couplings suit your application.
